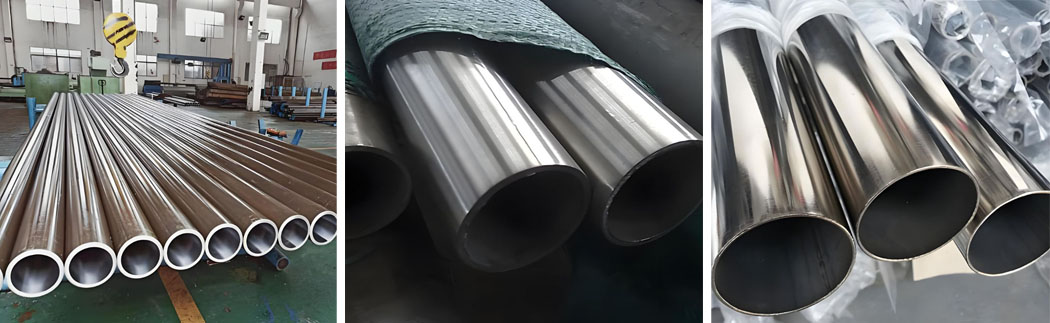

ASTM A269 TP347 Seamless and welded Tube: Niobium-Stabilized Stainless Steel Tube for High-Temperature Boiler & Heat Exchanger Systems
ASTM A269 TP347 Seamless and welded stainless steel tube is a premium niobium-stabilized austenitic stainless steel tubing manufactured to strict ASTM A269 standards for boilers, superheaters, and industrial heat exchangers. As a high-performance TP347 high-temperature Seamless and welded tube, it utilizes niobium alloy stabilization technology to completely prevent intergranular corrosion and carbide precipitation during welding and long-term high-temperature operation. Compared with TP321 and conventional 304 stainless steel tubes, this ASTM A269 TP347 heat exchanger tube delivers superior thermal stability, creep resistance, and structural durability, making it a top choice for high-pressure thermal systems in harsh industrial environments.
The biggest advantage of ASTM A269 TP347 industrial Seamless and welded tube is its professional niobium-carbon matching design. With a niobium content of 10 times the carbon content up to 1.10%, the material effectively fixes free carbon atoms, eliminating welding sensitization risks without post-weld heat treatment. All TP347 corrosion-resistant Seamless and welded tubes undergo standardized solution annealing and strict non-destructive testing, including ultrasonic inspection and hydraulic pressure testing, ensuring precise dimensional tolerance, smooth surface finish, and stable long-term operational performance for power generation, petrochemical, and thermal energy projects.
Complying fully with official ASTM A269 specifications, the standardized chemical composition guarantees stable alloy performance and full global project compliance:
| Element |
Minimum (%) |
Maximum (%) |
|
Carbon (C) |
— |
0.08 |
|
Manganese (Mn) |
— |
2.00 |
|
Phosphorus (P) |
— |
0.045 |
|
Sulfur (S) |
— |
0.030 |
|
Silicon (Si) |
— |
1.00 |
|
Chromium (Cr) |
17.00 |
20.00 |
|
Nickel (Ni) |
9.00 |
13.00 |
|
Niobium (Nb) |
10 × C |
1.10 |
After professional solution heat treatment, all ASTM A269 TP347 high-temperature resistant tubes meet strict mechanical benchmarks, ensuring excellent toughness and pressure resistance for industrial service:
| Mechanical Property |
Standard Value |
|
Tensile Strength (MPa) |
≥ 515 |
|
Yield Strength (MPa) |
≥ 205 |
|
Elongation (2 inch, %) |
≥ 35 |
|
Max Hardness (HRB) |
≤ 90 |
The niobium-stabilized microstructure grants ASTM A269 TP347 Seamless and welded tubing exceptional anti-aging and anti-corrosion performance at temperatures up to 900°C. It effectively resists intergranular corrosion, thermal fatigue, and oxidation under continuous high-temperature and high-pressure cycling conditions. Unlike titanium-stabilized grades, TP347 maintains more stable performance in long-term thermal service, avoiding material degradation and pipeline failure caused by frequent temperature changes.
Common applications for TP347 boiler and superheater tube include power plant thermal systems, industrial boiler superheaters and reheaters, petrochemical high-temperature reaction pipelines, and heavy-duty heat exchanger equipment. It is also widely used in industrial projects requiring frequent welding and long-term high-temperature operation, effectively reducing maintenance costs and extending equipment service life compared with ordinary stainless steel tubing.
As a reliable ASTM A269 TP347 tube supplier, we provide full-size standard and custom Seamless and welded tubes with complete MTR and ISO certifications. All products pass strict dimensional calibration and non-destructive testing, supporting customized sizes and precision processing. We deliver high-quality, cost-effective ASTM A269 TP347 Seamless and welded tube solutions for global industrial and thermal engineering projects.
