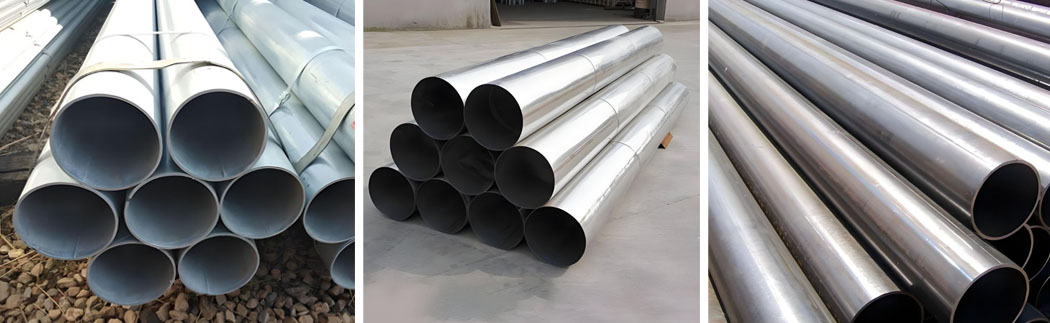

ASTM A312 TP316L Stainless steel Tube

ASTMA312 TP316L seamless tube is a premium low-carbon molybdenum-bearing austenitic stainless steel pipe manufactured per strict ASTM A312 industrial standards. Low-Carbon Molybdenum Stainless Steel for Weldable Corrosion-Resistant Piping

ASTM A312 TP316L Seamless Tube: Low-Carbon Molybdenum Stainless Steel for Weldable Corrosion-Resistant Piping

ASTMA312 TP316L seamless tube is a premium low-carbon molybdenum-bearing austenitic stainless steel pipe manufactured per strict ASTM A312 industrial standards. As the ultra-low-carbon upgraded variant of standard TP316 grade, the A312 TP316L boiler and heat exchanger tube features a refined 16Cr-12Ni-2Mo alloy formula with carbon content limited below 0.03%. This professional design eliminates welding sensitization and intergranular corrosion risks, making it the most reliable low-carbon corrosion-resistant seamless stainless steel tube for welded industrial piping, chemical processing, marine systems, and medium-temperature boiler heat exchange equipment.

The core marketing advantage of ASTMA312 TP316L stainless steel tube lies in its perfect combination of molybdenum anti-corrosion performance and low-carbon welding stability. Compared with regular TP316 tubes, this TP316L weldable seamless tube adopts ultra-low carbon technology to prevent carbide precipitation during high-temperature welding and thermal cycling. The added molybdenum element delivers outstanding resistance to chloride pitting, crevice corrosion, and acidic medium erosion, far exceeding 304 and 304L stainless steel in harsh corrosive environments. It retains excellent ductility, thermal stability, and oxidation resistance of austenitic stainless steel, ensuring long-term safe operation in medium-temperature and high-humidity industrial scenarios.

ASTMA312 TP316L industrial seamless tube boasts superior processing adaptability and durable operational performance. With uniform solution-treated microstructure, it supports flexible on-site cutting, bending, and full welding construction without post-weld corrosion failure. All our ASTMA312 TP316L pressure-resistant seamless tubes undergo strict quality control, including 100% ultrasonic non-destructive testing, hydraulic pressure testing, dimensional tolerance calibration, and surface defect inspection. Complete MTR certificates and ASTM standard compliance reports are provided for each batch, fully meeting global petrochemical, power generation, marine, and environmental engineering acceptance standards.

ASTM A312 TP316L Chemical Composition (Weight %)

Element

Specification Range (wt%)

Carbon (C)

≤ 0.030

Silicon (Si)

≤ 1.00

Manganese (Mn)

≤ 2.00

Phosphorus (P)

≤ 0.045

Sulfur (S)

≤ 0.030

Chromium (Cr)

16.00 – 18.00

Nickel (Ni)

10.00 – 14.00

Molybdenum (Mo)

2.00 – 3.00

Iron (Fe)

Balance


ASTM A312 TP316L Mechanical Properties (Room Temperature)

Mechanical Property

Standard Value

Minimum Tensile Strength

485 MPa

0.2% Offset Yield Strength (Min)

170 MPa

Elongation (50mm Gauge, Min)

35%

Maximum Brinell Hardness (HB)

≤ 192 HB


A312 TP316L seamless stainless steel tube delivers unmatched long-term reliability for welded and corrosive industrial piping systems. Its ultra-low-carbon structure completely avoids post-weld intergranular corrosion, while molybdenum alloying provides excellent resistance to seawater, flue gas, and weak acid corrosion. It maintains stable mechanical performance and thermal fatigue resistance under continuous medium-temperature operation, effectively preventing pipeline aging, leakage, and cracking failures. Ideal for boiler heat exchangers, chemical fluid pipelines, desalination equipment, and coastal industrial piping, it greatly reduces maintenance costs and extends overall service life.

As a professional ASTMA312 TP316L tube supplier, we offer standard and custom-sized seamless tubes, supporting bulk wholesale, personalized processing, and global fast delivery. All products strictly comply with ASTM A312 international standards with complete MTR certifications. For industrial projects prioritizing weld stability and superior corrosion resistance, TP316L low-carbon molybdenum seamless tubes are your most cost-effective and trustworthy long-term piping solution.
