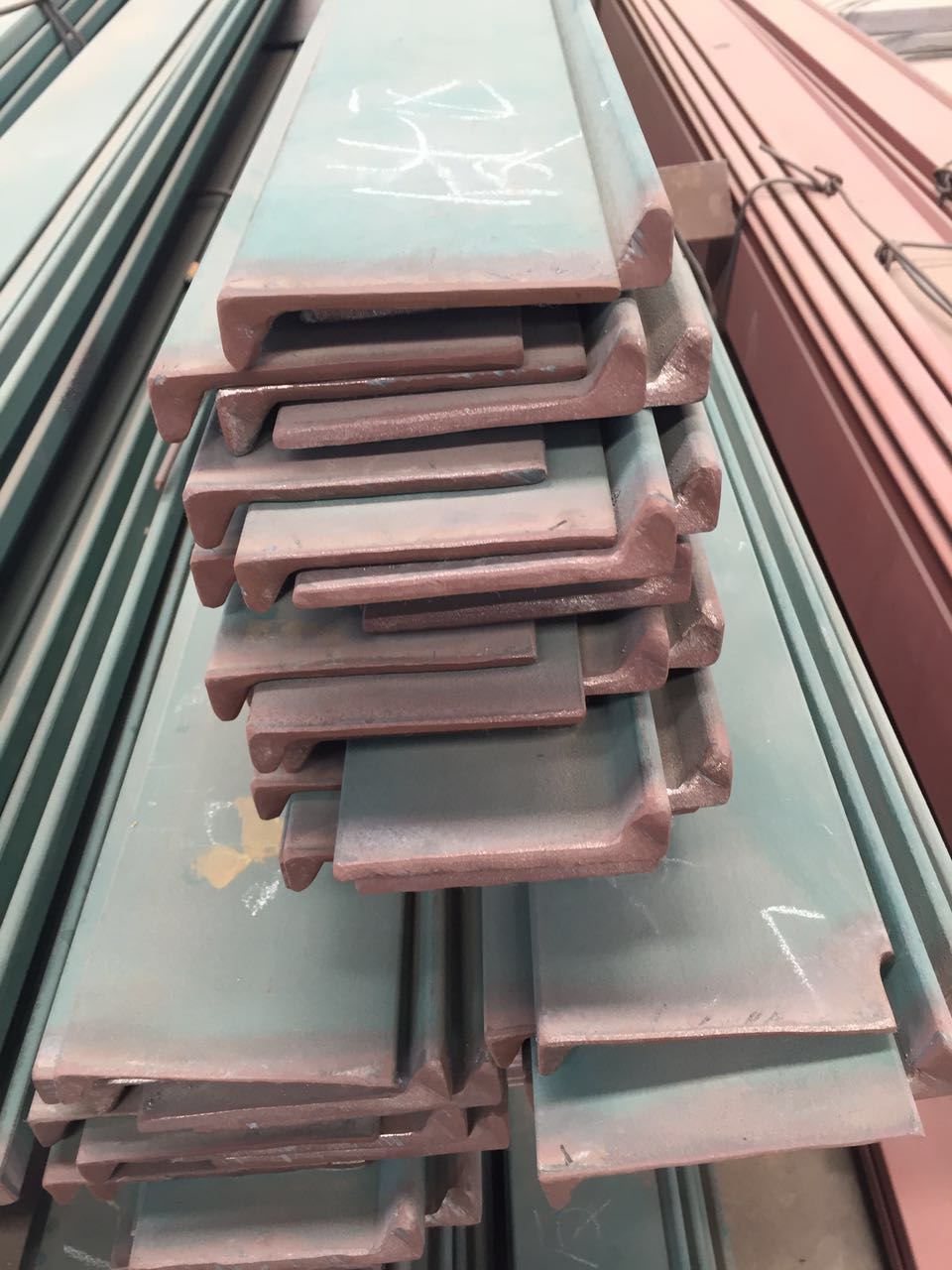

BV Grade A32 bulb flat steel bars

BV Grade A32 marine bulb flat steel bar with good toughness properties,higher strength.BV Grade A32 bulb flat steel bar are mainly used to contribute hull of ships and the cranes of break bulker and vessels in low temperature oceans.All of our stock is the high quality BV Grade A32 bulb flat steel bar shipbuilding steel plate.we has a large number of stocks.BV Grade A32 bulb flat steel bar specifications:80 × 5/6,100 × 7/8,120 × 6/7/8,140 × 7/8/10,160 × 7/8/9/11,180 × 8/9/10/11,200 × 9/10/1112,220 × 10/11/12,240 × 10/11/12,260 × 10/11/12,280 × 11/12/13,300 × 11/12/13,320 × 12/13/14,340 × 12/13/14,370 × 13/14/15,400 × 14/15/16,430 × 14/15/17/19/20.
BV AH32, BV/AH32 chemical composition in shipbuilding steelbars, angle steel bar, bulb flat bar, L section steel bar

Grade	C max	Si max	Mn	P max	S max	Als min	Ti max	Cu max	Cr max	Ni max	Mo max
BV/AH32	0.18	0.50	0.90-1.60	0.035	0.035	0.015	0.02	0.35	0.20	0.40	0.08

Note: Generally speaking CE will be ≤ 0.40%. If the delivery condition is TMPC, the CE will be : ≤ 0.36% (thickness ≤ 50mm),≤0.38%( when the thickness >50-100).
Ceq% =(C+Mn)/6+(Cr+Mo+V)/5+(Ni+Cu)/15.
BV AH32, BV/AH32 Mechanical Property in shipbuilding angle steel bar, bulb flat bar, L section steel bar

Grade	Rm (MPa)	Re(MPa) min	A% min	Akv/J min
				E.T °C	Thickness (mm)
					≤ 50		>50-70		>70-100
					L	C	L	C	L	C
BV/AH32	440-570	315	22	0	31	22	38	26	46	31

BV AH32, BV/AH32 shipbuilding steel plate, angle steel bar, bulb flat bar, L section steel bar delivery condition :

Grade	Fine grains elements	category	The thickness of steel
			≤ 12	>12.5-20	>20-25	>25-35	>35-50	>50-100
BV/AH32	Nb+V or V	Plate/sheet	A(50)	N(50),CR(50),TM(50)				N(50),CR(25),TM(50)
		Profile steel		N(50),CR(50),TM(50),AR*(25)				-
	Al or Al+Ti	Plate/sheet	A(50)		AR*(25)		-
					N(50),CR(50),TM(50)			N(50),CR(25),TM(50)
		Profile steel	A(50)	N(50),CR(50),TM(50),AR*(25)				-

China special steel limited as the qualified BV Grade A32 bulb flat steel bar supplier,always want to give you better products of BV Grade A32 bulb flat steel bar.and you can tell us what kind of BV Grade A32 bulb flat steel bar you need,we are capable to give you the right BV Grade A32 bulb flat steel bar you need.
China special steel limited can guarantee the quality of BV Grade A32 bulb flat steel bar,also you can get a fair BV A32 Grade A32 bulb flat steel bar price from the qualified BV Grade A32 bulb flat steel bar supplier,so if you need,don't hesitate to contact us
