17-4PH Martensite stainless steel

17-4PH Martensite stainless steel

Martensite stainless steel 17-4PH

17-4PH stainless steel equal material: AISI630, SUS630, AMS 5604B, UNS S17400, 1.4542, X5CrNiCuNb 16-4, Z5 CNU 17-4PH

17-4PH is precipitation, quenching, martensite stainless steel, and this level has high strength, hardness (up to 3000 C/5000 C) and corrosion resistance and other characteristics. After heat treatment, the mechanical properties of the products more perfect, can reach as high as 1100-1300 MPa (160-190 Ksi) compressive strength. This class cannot be used for more than 300 0C (572 0F) or very low temperatures, it has good corrosion resistance to atmospheric and dilute acid or Yandu, corrosion resistance and its 304 and 430.

Stainless steel 17-4PH chemical composition


Cr
Cu
C
Mn
Si
Nb
Ni
P
S
minimum
15.5
4.0



0.15
3.0


maximum
17.5
7.0
0.07
1.00
1.00
0.45
5.0
0.04
0.03

17-4PH Stainless steel mechanical property:
Ultimate tensile strength σ B (MPa):480 degree aging, ≥ 1310 degree ageing; 550, ≥ 1060 degree ageing; 580, ≥ 1000 degree ageing; 620, ≥ 930
The yield strength σ 0.2 (MPa):480 degree aging, ≥ 1180 ℃degree ageing; 550, ≥ 1000 degree ageing; 580, ≥ 865 degree ageing; 620, ≥ 725
Elongation δ 5 (%):480 degree aging, ≥ 10 degree ageing; 550, ≥ 12 degree ageing; 580, ≥ 13 degree ageing; 620, ≥ 16

Stainless steel 17-4PH physical property:
Stainless steel 17-4PH density: 7.8kg/ m3
Stainless steel 17-4PH Melting temperature range:1400-1440 degree

Stainless steel 17-4PH chief application:
offshore platform, helicopter deck, other platforms, food industry, the pulp and paper industry,Aerospace (turbine), mechanical components, nuclear waste bucket

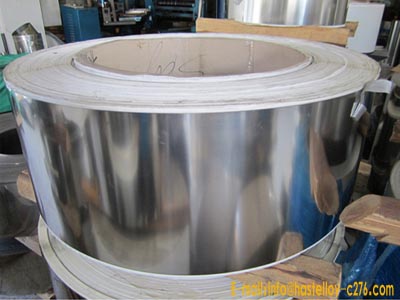

Product :Available forms are 17-4PH Stainless steel seamless pipe, welded pipe, seamless tube, welded tube, bar, wire, sheet, plate, forgings, pipe fittings and flanges.
