Martensite stainless steel S17400

Martensite stainless steel S17400

S17400 stainless steel equal material : ASTM A693, grade 630 ,AMS 5604B, UNS S17400, 1.4542 , X5CrNiCuNb 16-4
S17400 is precipitation, quenching, martensite stainless steel, and this level has high strength, hardness (up to 3000 C/5000 C) and corrosion resistance and other characteristics. After heat treatment, the mechanical properties of the products more perfect, can reach as high as 1100-1300 MPa (160-190 Ksi) compressive strength. This class cannot be used for more than 300 0C (572 0F) or very low temperatures, it has good corrosionresistance to atmospheric and dilute acid or Yandu, corrosion resistance and its 304 and 430.

Stainless steel S17400 chemical composition

	Cr	Cu	C	Mn	Si	Nb	Ni	P	S
minimum	15.5	4.0				0.15	3.0
maximum	17.5	7.0	0.07	1.00	1.00	0.45	5.0	0.04	0.03

S17400 Stainless steel mechanical property:
Ultimate tensile strength σ B (MPa):480 degree aging, ≥ 1310 degree ageing; 550, ≥ 1060 degree ageing; 580, ≥ 1000 degree ageing; 620, ≥ 930
The yield strength σ 0.2 (MPa):480 degree aging, ≥ 1180 ℃degree ageing; 550, ≥ 1000 degree ageing; 580, ≥ 865 degree ageing; 620, ≥ 725
Elongation δ 5 (%):480 degree aging, ≥ 10 degree ageing; 550, ≥ 12 degree ageing; 580, ≥ 13 degree ageing; 620, ≥ 16

Stainless steel S17400 physical property:
Stainless steel S17400 density： 7.8kg/ m3 Stainless steel S17400 Melting temperature range：1400-1440 degree

Stainless steel S17400 chief application:
offshore platform, helicopter deck, other platforms, food industry, the pulp and paper industry ,Aerospace (turbine), mechanical components, nuclear waste bucket

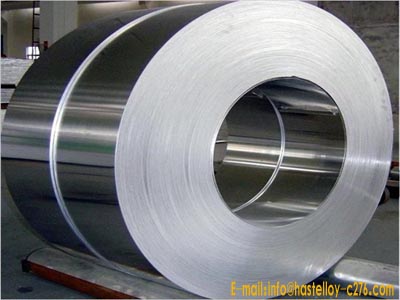

Product :Available forms are S17400 Stainless steel seamless pipe, welded pipe, seamless tube, welded tube, bar, wire, sheet, plate, forgings, pipe fittings and flanges.
