Martensite stainless steel AISI 630

Martensite stainless steel AISI630

AISI630 stainless steel equal material: AISI630, SUS630, AMS 5604B, UNS S17400, 1.4542, X5CrNiCuNb 16-4, Z5 CNU 17-4PH

AISI630 is precipitation, quenching, martensite stainless steel, and this level has high strength, hardness (up to 3000 C/5000 C) and corrosion resistance and other characteristics. After heat treatment, the mechanical properties of the products more perfect, can reach as high as 1100-1300 MPa (160-190 Ksi) compressive strength. This class cannot be used for more than 300 0C (572 0F) or very low temperatures, it has good corrosionresistance to atmospheric and dilute acid or Yandu, corrosion resistance and its 304 and 430.

Stainless steel AISI630 chemical composition

	Cr	Cu	C	Mn	Si	Nb	Ni	P	S
minimum	15.5	4.0				0.15	3.0
maximum	17.5	7.0	0.07	1.00	1.00	0.45	5.0	0.04	0.03

AISI630 Stainless steel mechanical property:
Ultimate tensile strength σ B (MPa):480 degree aging, ≥ 1310 degree ageing; 550, ≥ 1060 degree ageing; 580, ≥ 1000 degree ageing; 620, ≥ 930
The yield strength σ 0.2 (MPa):480 degree aging, ≥ 1180 ℃degree ageing; 550, ≥ 1000 degree ageing; 580, ≥ 865 degree ageing; 620, ≥ 725
Elongation δ 5 (%):480 degree aging, ≥ 10 degree ageing; 550, ≥ 12 degree ageing; 580, ≥ 13 degree ageing; 620, ≥ 16

Stainless steel AISI630 physical property:
Stainless steel AISI630 density： 7.8kg/ m3 Stainless steel AISI630 Melting temperature range：1400-1440 degree

Stainless steel AISI630 chief application:
offshore platform, helicopter deck, other platforms, food industry, the pulp and paper industry ,Aerospace (turbine), mechanical components, nuclear waste bucket

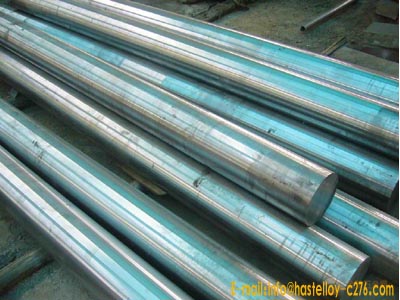

Product :Available forms are AISI630 Stainless steel seamless pipe, welded pipe, seamless tube, welded tube, bar, wire, sheet, plate, forgings, pipe fittings and flanges.
