Nickel-copper alloy, having high strength, in a variety of media have excellent corrosion resistance, comprising water, hydrofluoric acid, sulfuric acid and alkali. For marine engineering, chemical and hydrocarbon production equipment, valves, pumps, shafts, fittings, fasteners and heat exchangers.
Monel 400 alloy chemical composition :
|
C |
S |
Cu |
Ni |
Fe |
Mn |
Si |
Min |
|
|
28.0 |
63.0 |
|
|
|
Max |
0.3 |
0.024 |
34.0 |
|
2.5 |
2.0 |
0.5 |
Monel 400 alloy Physical Properties
Density Density,g/cm3 |
8.8 |
Melting point Melting Range,℃ |
1300-1350 |

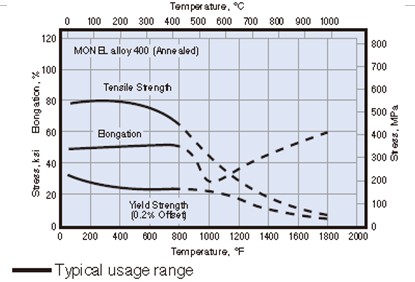

Monel 400 alloy Mechanical Properties
Tensile strength Mpa |
Yield Strength Mpa |
Elongation ,% |
80-550 |
35-240 |
40 |
Monel 400 alloy Metallurgical structure
Monel 400 is the solution of binary alloys. Because nickel and copper can be either a percentage of solubility, so single-phase alloys. Has a face-centered cubic lattice structure.
Monel 400 alloy Corrosion
Monel 400 alloy for many reducing media showed corrosion resistance. In the oxidizing medium is usually more resistant to erosion than the ability to contain higher copper alloy. This versatility makes the alloy is suitable for a variety of environments.
Monel 400 is widely used in marine engineering. The alloy products in seawater flow showed a lower corrosion rate, but in a static environment, but it will appear crevice corrosion and pitting. The alloy in most fresh and industrial waters are also resistant to stress corrosion cracking and pitting performance.
Monel 400 Special corrosion hydrofluoric acid all concentrations, even up to the boiling point. The alloy used in all engineering alloys is probably the most corrosion resistance. The alloy for reducing many forms sulfuric acid and hydrochloric acid also has corrosion resistance.
Monel 400 alloy application
1.Power plants to water pipes and steam generator tubes
2.Desalination plant brine heater and evaporator
3.Pumps and valves used in the production of chlorinated hydrocarbons
4.Crude distillation column cover layer
5.Splashing water area offshore structures protective shell
6.Refining uranium isotope separation equipment and nuclear fuel production for
7.Propeller shaft and used in seawater service
