GL Grade D32 L shape steel bars

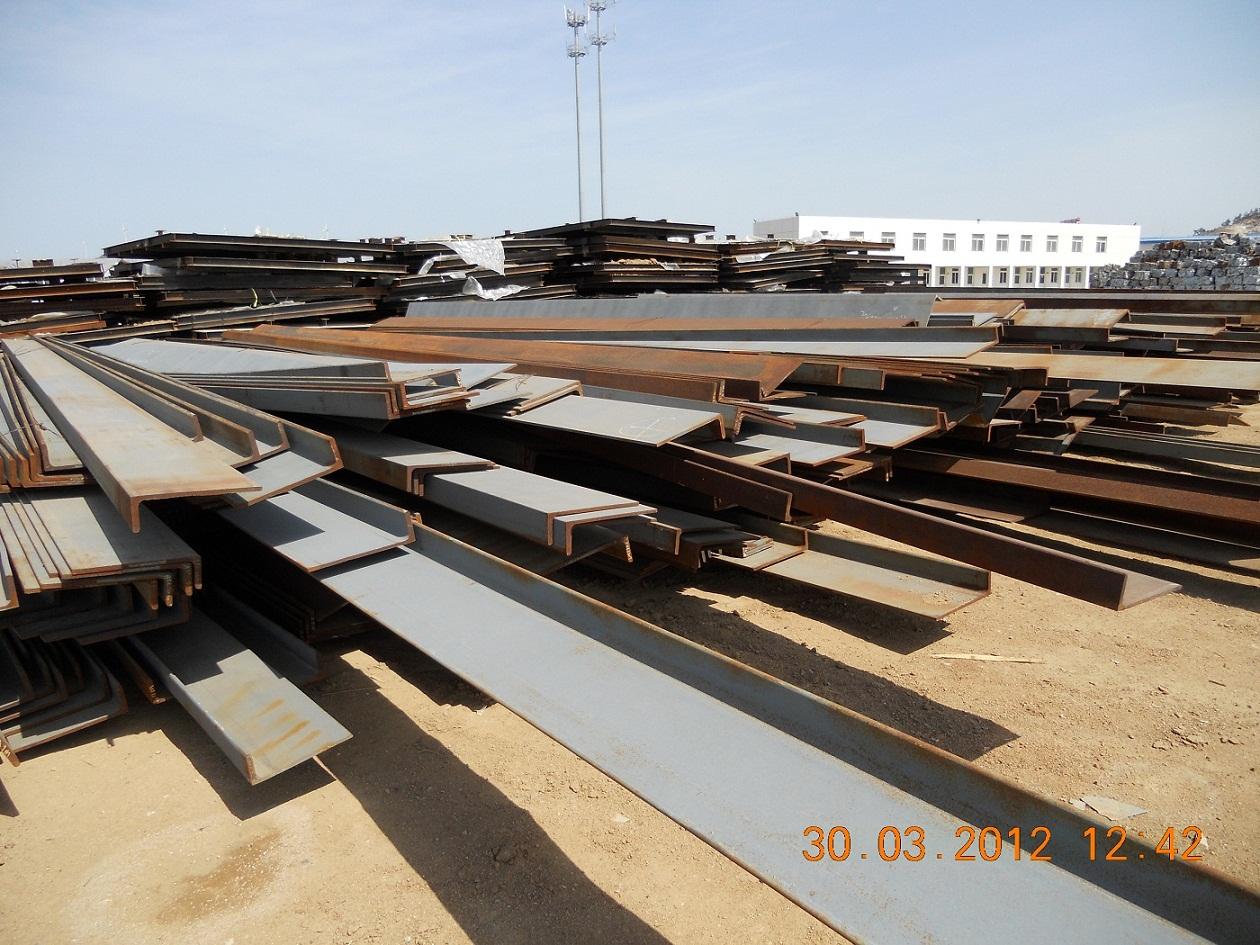

GL Grade D32 shape steel bar with good toughness properties, higher strength. GL Grade D32 L shape steel bar are mainly used to contribute hull of ships and the cranes of break bulker and vessels in low temperature oceans. All of our stock is the high quality GL Grade D32 L shape steel bar shipbuilding steel. China special steel limited has a large number of stocks.

GL Grade D32 L shape steel bar specifications: 200 × 90 × 8 ×14, 200 × 90 × 9 × 14, 200 × 90 ×10 ×14, 250 × 90 × 9 × 14, 250 × 90 × 9 × 15, 250 × 90 × 10 × 15, 250 × 90 × 11× 16, 250 × 90 × 12 × 16, 300 × 90 × 10 × 16, 300 × 90 × 11× 16, 300 × 90 × 11 × 16, 300 × 90 × 12 × 17, 300 × 90 × 13 × 17, 350 × 100 × 11 × 17, 350 × 100 × 12 × 17, 400 × 100 × 11.5 × 16, 400 × 100 × 12 × 18, 400 × 100 × 13 × 18, 450 × 125 × 11.5 × 18

GL D, GL D32 chemical composition in shipbuilding angle steel bar, bulb flat bar, L section steel bar

Grade	C max	Si max	Mn	P max	S max	Als min	Ti max	Cu max	Cr max	Ni max	Mo max
GL-D32	0.18	0.50	0.90-1.60	0.035	0.035	0.015	0.02	0.35	0.20	0.40	0.08

Note: Generally speaking CE will be ≤ 0.40%. If the delivery condition is TMPC, the CE will be : ≤ 0.36% (thickness ≤ 50mm),≤0.38%( when the thickness > 50-100).
Ceq% =(C+Mn)/6+(Cr+Mo+V)/5+(Ni+Cu)/15.

GL DH32, GL-D32 Mechanical Property in shipbuilding angle steel bar, bulb flat bar, L section steel bar

Grade	Rm (MPa)	Re(MPa) min	A% min	Akv/J min
				E.T °C	Thickness (mm)
					≤ 50		> 50-70		> 70-100
					L	C	L	C	L	C
GL-D32	440-570	315	22	-20	31	22	38	26	46	31

GL DH32, GL-D32 shipbuilding steel plate, angle steel bar, bulb flat bar, L section steel bar delivery condition :

Grade	Fine grains elements	category	The thickness of steel
			≤ 12	> 12.5-20	> 20-25	> 25-35	> 35-50	> 50-100
DH32	Nb+V or V	Plate/sheet	A(50)	N(50),CR(50),TM(50)				N(50),CR(25),TM(50)
		Profile steel		N(50),CR(50),TM(50),AR*(25)				-
	Al or Al+Ti	Plate/sheet	A(50)		AR*(25)		-
					N(50),CR(50),TM(50)			N(50),CR(25),TM(50)
		Profile steel	A(50)	N(50),CR(50),TM(50),AR*(25)				-

We also have a high quality logistics team who make sure the fast delivery time and shipment. Anyway, if you want to find GL Grade D32 L shape steel bar, GL D32 shipbuilding steel /sheet/angle bar/bulb flat bar/ L section steel bar supplier, GL Grade D32 L shape steel bar, GL D32 shipbuilding steel/sheet/angle bar/bulb flat bar/ L section steel bar manufacturer, GL Grade D32 L shape steel bar, GL D32 shipbuilding steel/sheet/angle bar/bulb flat bar/ L section steel bar exporter, please contact China special steel limited give you GL Grade D32 L shape steel bar, GL D32 shipbuilding steel/sheet/angle bar/bulb flat bar/ L section steel bar competitive price, GL Grade D32 L shape steel bar,GL D32 shipbuilding steel plate/sheet/angle bar/bulb flat bar/ L section steel bar good quality and best service from us.
