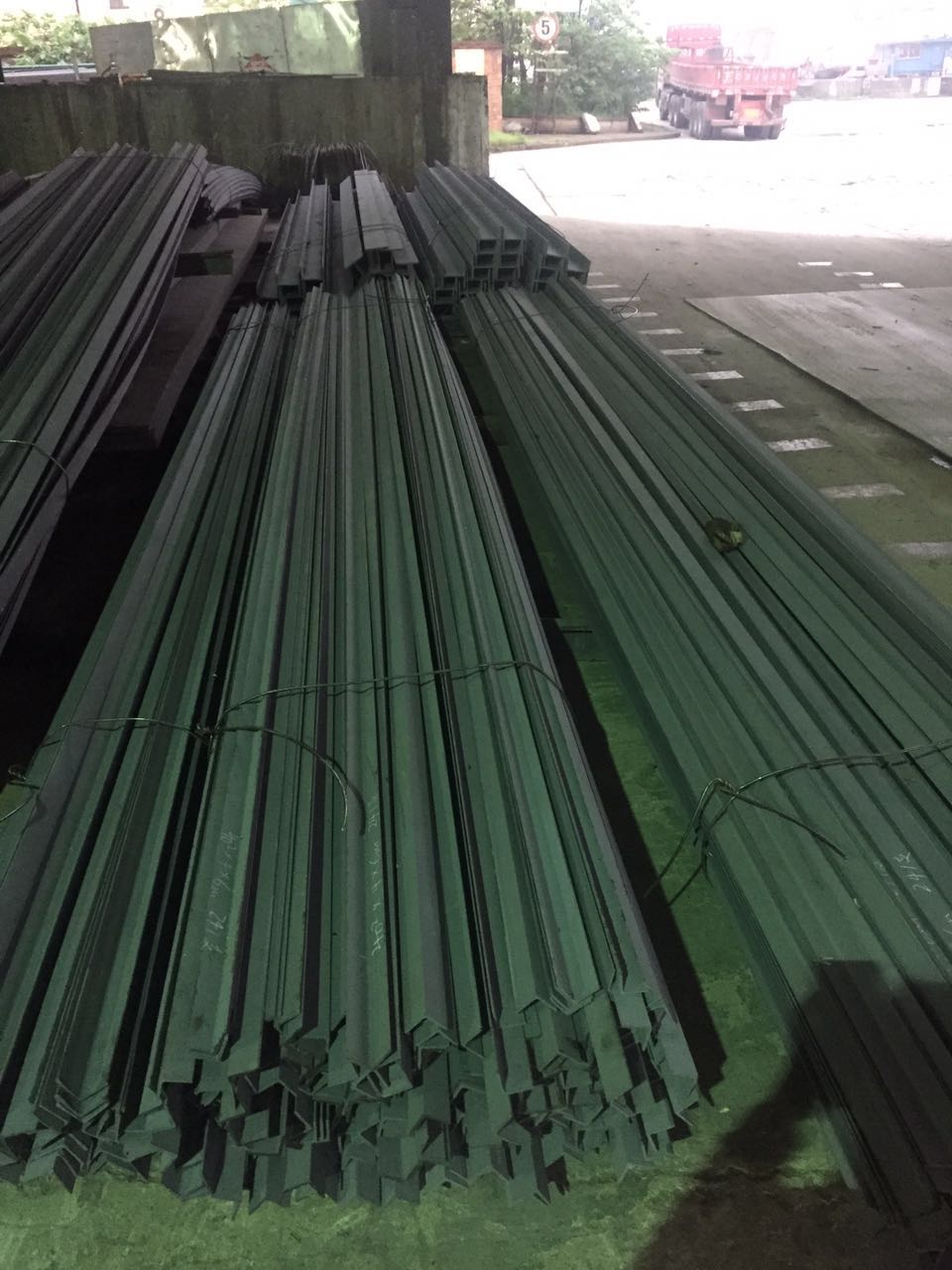

DNV A36 angle steel plate

DNV A36 angle steel with good toughness properties, higher strength. DNV A36 angle steel are mainly used to contribute hull of ships and the cranes of break bulk and vessels in low temperature oceans. All of our stock is the high quality DNV A36 angle steel shipbuilding steel bars.
DNV A36 angle steel specifications: 100× 75 × 7/10, 100×75×8/10, 125 × 75 × 7/10, 125×75×8/10, 150 × 90 × 9/12, 150×90×10/12, 150×100×12
DNV A36 angle steel chemical composition:

Grade	C max	Si max	Mn	P max	S max	Als min	Ti max	Cu max	Cr max	Ni max	Mo max	Nb	V
AH36	0.18	0.50	0.90-1.60	0.035	0.035	0.015	0.02	0.35	0.20	0.40	0.08	0.02-0.05	0.05-0.10

Note: Generally speaking CE will be ≤ 0.40%. If the delivery condition is TMPC, the CE will be : ≤ 0.36% (thickness ≤ 50mm),≤0.38%( when the thickness >50-100).
Ceq% =(C+Mn)/6+(Cr+Mo+V)/5+(Ni+Cu)/15.
DNV AH36 angle Mechanical Property in shipbuilding angle steel bar, bulb flat bar, L section steel bar

Grade	Rm (MPa)	Re(MPa) min	A% min	Akv/J min
				E.T °C	Thickness (mm)
					≤ 50		>50-70		>70-100
					L	C	L	C	L	C
NVA36	490-630	355	21	0	34	24	41	27	50	34

DNV AH36, NVA36 shipbuilding angle steel bar, bulb flat bar, L section steel bar delivery condition :

Grade	Fine grains elements	category	The thickness of steel
			≤ 12	>12.5-20	>20-25	>25-35	>35-50	>50-100
AH36	Nb+V or V	Plate/sheet	A(50)	N(50),CR(50),TM(50)				N(50),CR(25),TM(50)
		Profile steel		N(50),CR(50),TM(50),AR*(25)				-
	Al or Al+Ti	Plate/sheet	A(50)		AR*(25)		-
		Profile steel			N(50),CR(50),TM(50)			N(50),CR(25),TM(50)
			A(50)	N(50),CR(50),TM(50),AR*(25)				-

China special steel limited keeps more than 10,000 tons hot rolled and cold rolled DNV A 36 angle steel, NVA36 shipbuilding steel in stock each month. We can meet our customer’s any quantity request. Based on these stock source, our advantage industry spread into steel process like : cutting ( any size and any shape ) drilling, welding, milling, machining and steel structure. Anyway if you have any need of DNV A36 angle steel bars,please contact us.
