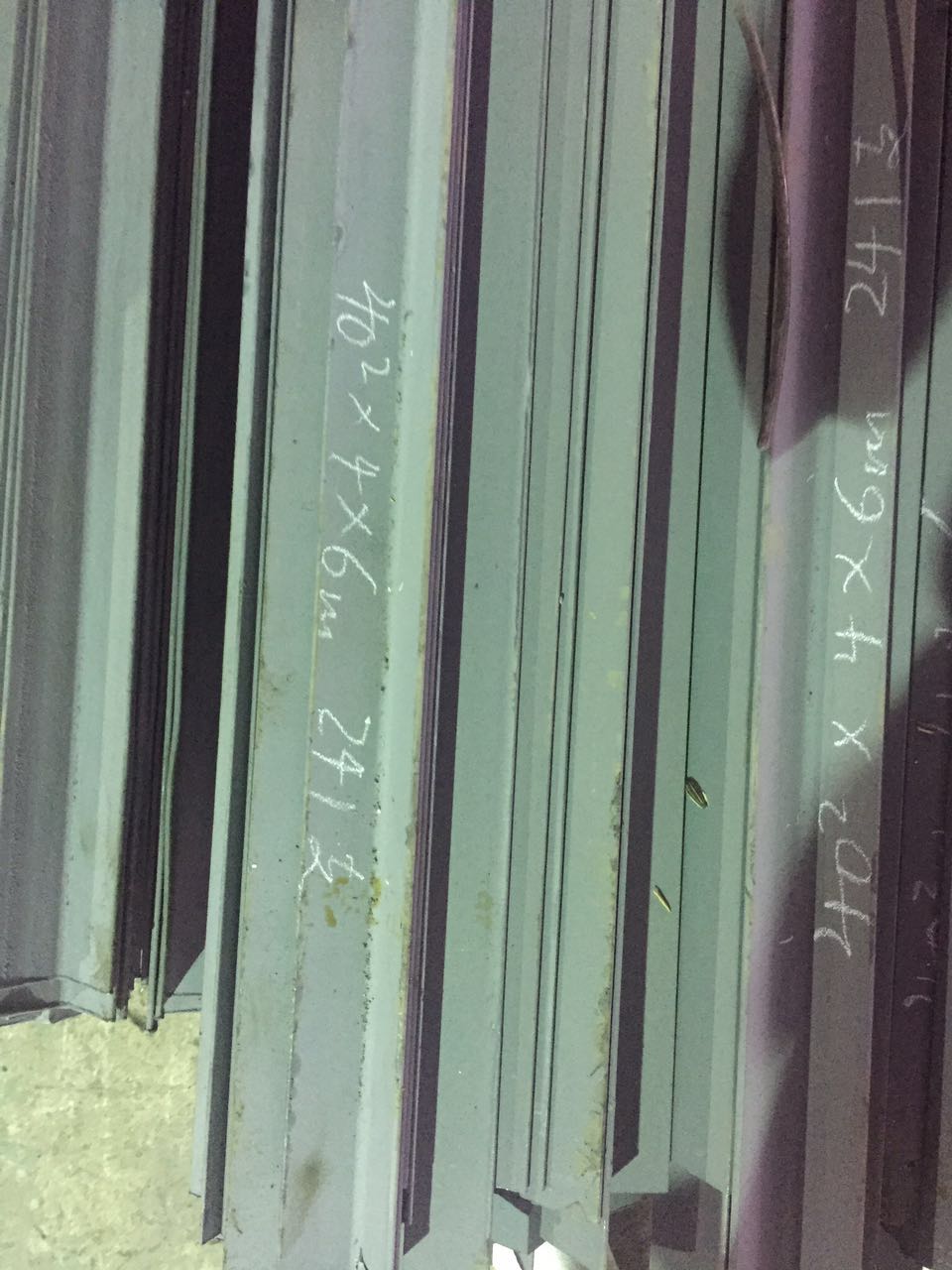

KR D32 angle steel bars

KR Grade D32 angle steel with good toughness properties, higher strength. KR Grade D32 angle steel are mainly used to contribute hull of ships and the cranes of break bulker and vessels in low temperature oceans. All of our stock is the high quality KR Grade D32 angle steel shipbuilding steel plate. China special steel limited has a large number of stocks.
KR D32 angle steel specifications: 100× 75 × 7/10, 100×75×8/10, 125 × 75 × 7/10, 125×75×8/10, 150 × 90 × 9/12, 150×90×10/12, 150×100×12

Grade	C max	Si max	Mn	P max	S max	Als min	Ti max	Cu max	Cr max	Ni max	Mo max
R D32	0.18	0.50	0.90-1.60	0.035	0.035	0.015	0.02	0.35	0.20	0.40	0.08

Note: Generally speaking CE will be ≤ 0.40%. If the delivery condition is TMPC, the CE will be : ≤ 0.36% (thickness ≤ 50mm),≤0.38%( when the thickness >50-100).
Ceq% =(C+Mn)/6+(Cr+Mo+V)/5+(Ni+Cu)/15.
KR DH32, R D32 Mechanical Property in shipbuilding steel plate, angle steel bar, bulb flat bar, L section steel bar

Grade	Rm (MPa)	Re(MPa) min	A% min	Akv/J min
				E.T °C	Thickness (mm)
					≤ 50		>50-70		>70-100
					L	C	L	C	L	C
R D32	440-570	315	22	-20	31	22	38	26	46	31

KR DH32, R D32 shipbuilding steel angle steel bar, bulb flat bar, L section steel bar delivery condition :

Grade	Fine grains elements	category	The thickness of steel
			≤ 12	>12.5-20	>20-25	>25-35	>35-50	>50-100
DH32	Nb+V or V	Plate/sheet	A(50)	N(50),CR(50),TM(50)				N(50),CR(25),TM(50)
		Profile steel		N(50),CR(50),TM(50),AR*(25)				-
	Al or Al+Ti	Plate/sheet	A(50)		AR*(25)		-
					N(50),CR(50),TM(50)			N(50),CR(25),TM(50)
		Profile steel	A(50)	N(50),CR(50),TM(50),AR*(25)				-

China special steel limited steel keeps more than 10,000 tons hot rolled and cold rolled KR DH32, R D32 shipbuilding steel in stock each month. We can meet our customer’s any quantity request. Based on these stock source, our advantage industry spread into steel process like : cutting ( any size and any shape ) drilling, welding, milling, machining and steel structure.
We also have a high quality logistics team who make sure the fast delivery time and shipment. Anyway, if you want to find KR DH32, R D32 shipbuilding steel/sheet/angle bar/bulb flat bar/ L section steel bar supplier, KR DH32, R D32 shipbuilding steel/sheet/angle bar/bulb flat bar/ L section steel bar manufacturer, KR DH32, R D32 shipbuilding steel/sheet/angle bar/bulb flat bar/ L section steel bar exporter, please contact China special steel limited’s sales team. We will give you the KR DH32, R D32 shipbuilding steel/sheet/angle bar/bulb flat bar/ L section steel bar competitive price, KR DH32, R D32 shipbuilding steel/sheet/angle bar/bulb flat bar/ L section steel bar good quality and best service from us.
