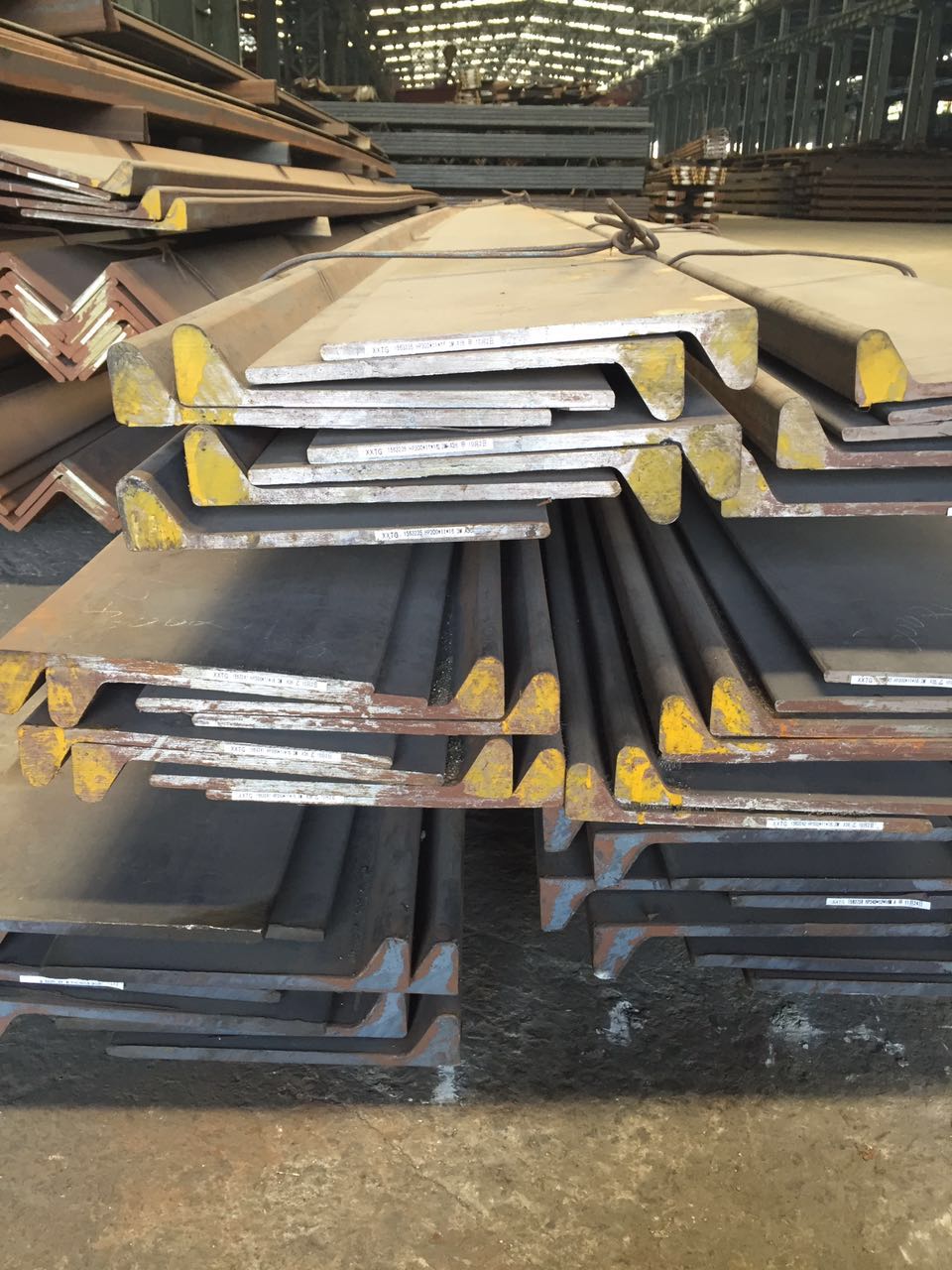

NK A36 bulb flat steel bars

NK Grade A36 marine bulb flat steel bar with good toughness properties,higher strength.NK Grade A36 bulb flat steel bar are mainly used to contribute hull of ships and the cranes of break bulker and vessels in low temperature oceans.All of our stock is the high quality NK Grade A36 bulb flat steel bar shipbuilding steel bars.we has a large number of stocks.NK Grade A36 bulb flat steel bar specifications:80 × 5/6,100 × 7/8,120 × 6/7/8,140 × 7/8/10,160 × 7/8/9/11,180 × 8/9/10/11,200 × 9/10/1112,220 × 10/11/12,240 × 10/11/12,260 × 10/11/12,280 × 11/12/13,300 × 11/12/13,320 × 12/13/14,340 × 12/13/14,370 × 13/14/15,400 × 14/15/16,430 × 14/15/17/19/20.
NK AH36, K A36 chemical composition in shipbuilding steel plate, angle steel bar, bulb flat bar, L section steel bar

Grade	C max	Si max	Mn	P max	S max	Als min	Ti max	Cu max	Cr max	Ni max	Mo max	Nb	V
AH36	0.18	0.50	0.90-1.60	0.035	0.035	0.015	0.02	0.35	0.20	0.40	0.08	0.02-0.05	0.05-0.10

Note: Generally speaking CE will be ≤ 0.40%. If the delivery condition is TMPC, the CE will be : ≤ 0.36% (thickness ≤ 50mm),≤0.38%( when the thickness >50-100).
Ceq% =(C+Mn)/6+(Cr+Mo+V)/5+(Ni+Cu)/15.
NK AH36, K A36 Mechanical Property in shipbuilding angle steel bar, bulb flat bar, L section steel bar

Grade	Rm (MPa)	Re(MPa) min	A% min	Akv/J min
				E.T °C	Thickness (mm)
					≤ 50		>50-70		>70-100
					L	C	L	C	L	C
K A36	490-630	355	21	0	34	24	41	27	50	34

NK AH36, K A36 shipbuilding angle steel bar, bulb flat bar, L section steel bar delivery condition :

Grade	Fine grains elements	category	The thickness of steel
			≤ 12	>12.5-20	>20-25	>25-35	>35-50	>50-100
AH36	Nb+V or V	Plate/sheet	A(50)	N(50),CR(50),TM(50)				N(50),CR(25),TM(50)
		Profile steel		N(50),CR(50),TM(50),AR*(25)				-
	Al or Al+Ti	Plate/sheet	A(50)		AR*(25)		-
		Profile steel			N(50),CR(50),TM(50)			N(50),CR(25),TM(50)
			A(50)	N(50),CR(50),TM(50),AR*(25)				-

China special steel limited as the qualified NK Grade A36 bulb flat steel bar supplier,always want to give you better products of NK Grade A36 bulb flat steel bar.and you can tell us what kind of NK Grade A36 bulb flat steel bar you need,we are capable to give you the right NK Grade A36 bulb flat steel bar you need.
China special steel limited can guarantee the quality of NK Grade A36 bulb flat steel bar,also you can get a fair NK Grade A36 bulb flat steel bar price from the qualified NK Grade A36 bulb flat steel bar supplier,so if you need,don't hesitate to contact us.
