Equal material : Inconel 690
Chinese standard :0Cr30Ni60Fe10
American Standard: N06690
Germany Standard : NiCr29Fe

NS315 alloy is on the basis of Inconel 600 alloy, the chromium content increased to 30%, a new type of evaporator carbon content below 0.04% and the development of nickel base corrosion resistant alloy. It not only has excellent resistance to stress corrosion cracking ability, but also has high strength, good stability and excellent metallurgical processing capability. Characteristics, has been widely used in PWR nuclear power plant on the evaporator tube.

Corrosion-resisting Nickel-base alloy NS315 chemical composition

Ni	Cr	Fe	C	Al	Ti	Mn	Si	Cu	P	S
Balance	30.39	8.88	0.023	0.22	0.26	0.23	0.07	0.02	0.006	0.002

NS315 alloy physical property :

Yield strength	Tensile strength	Elongation
350MPa	700MPa	45%

NS315 density : 8.19g/cm
NS315 melting point: 1343-1377 degree

NS315 alloy mechanical property:

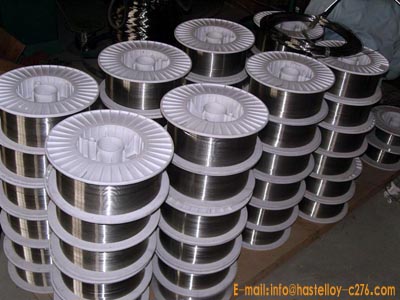

NS315 alloy Existence of main products: Forging, bar, sheet, strip, ring, wire, bolts, spring

NS315 alloy chief application:
NS315 alloy is mainly used for the material of nuclear power plant steam generator tubes in pressurized water reactor.
